User’s Guide for Control Panel of SMS Engine Enterprise Edition version 2.4


Applies to: version 2.4



Editing the Configuration
STEPS SCREEN CAPTURE

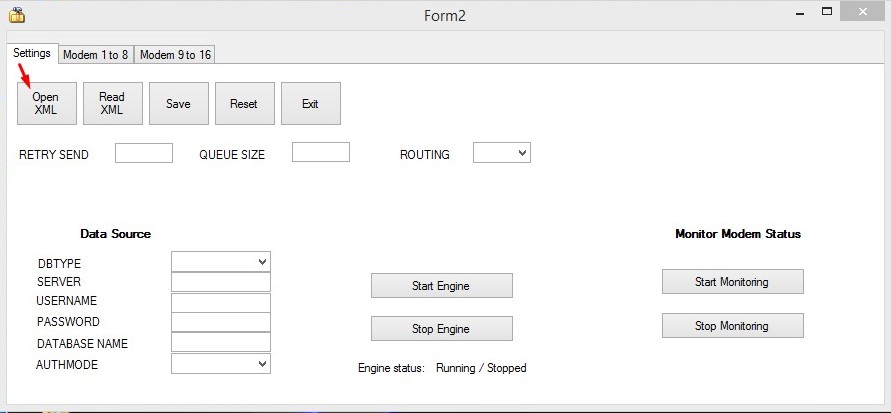

Click Open XML to choose "configuration file". User’s Guide for Control Panel v. 2.4-01
Select "config" and click open which is located in "C:Program Files\SMS Engine Enterprise Edition". User’s Guide for Control Panel v. 2.4-02

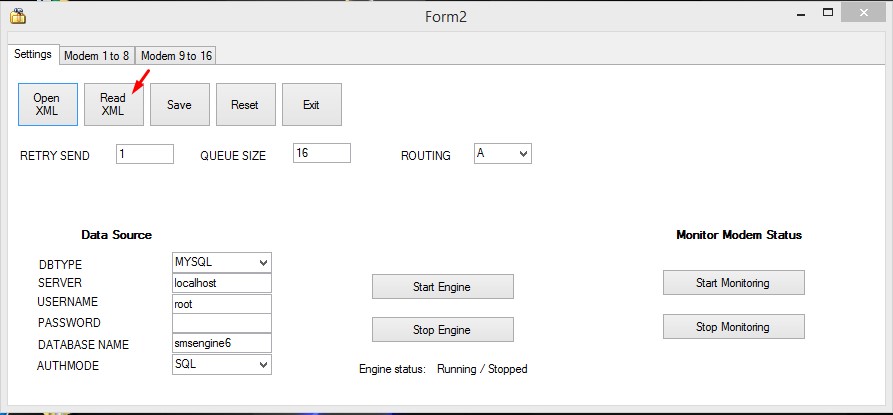

Click Read XML to read the content of  "config file". User’s Guide for Control Panel v. 2.4-03

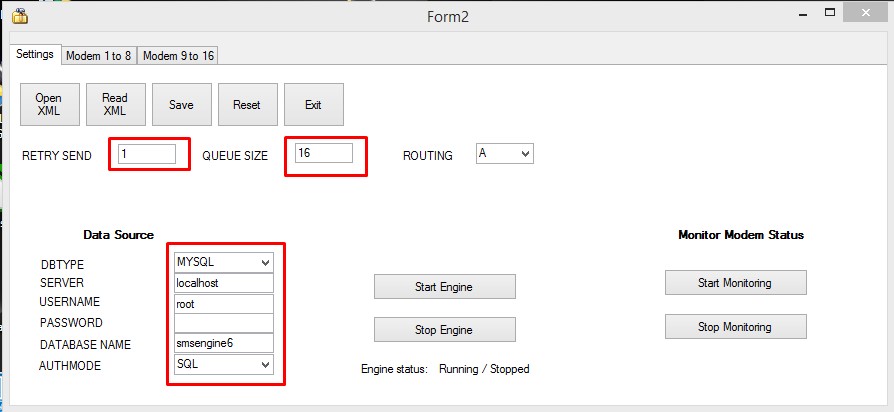

Update text box (RETRY SEND; QUEUE SIZE and ROUTING) and Data Source in Tab Setting. User’s Guide for Control Panel v. 2.4-04
Update text box (ID; PORT; ENABLED; MODE; TARGET_PREFIX) in Tab Modem 1 to 8 and Tab Modem 9 to 16. In this case the text box ENABLED for Modem ID 1 is 'True' because the sim card is inserted into Modem ID 1. User’s Guide for Control Panel v. 2.4-05 User’s Guide for Control Panel v. 2.4-06

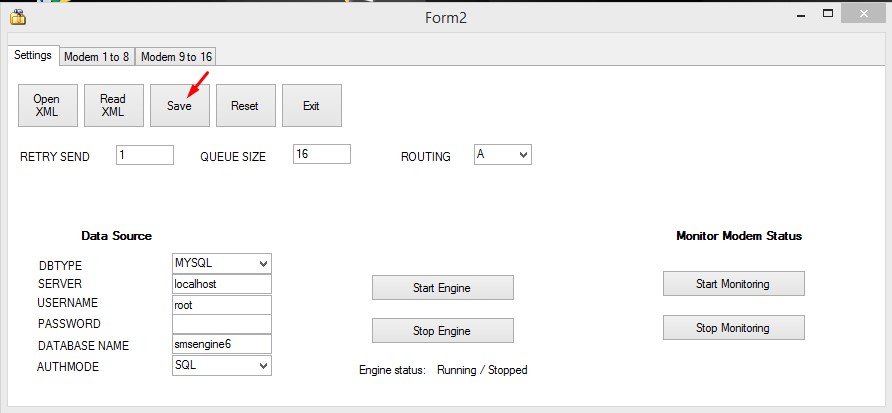

Click Save to save the changes made. User’s Guide for Control Panel v. 2.4-07

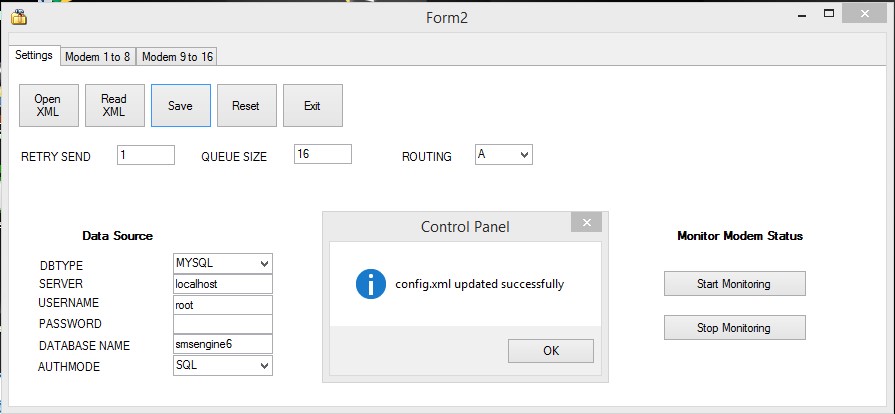

Configuration is saved successfully. User’s Guide for Control Panel v. 2.4-08



Monitoring the Modems
STEPS SCREEN CAPTURE
Open phpMyAdmin. Click on database which inserted in Data source. View table modem_state. It will show the modem status column. (Hint: 1= Stop; 3= Fail; 5= Initialized; 0= Disable) User’s Guide for Control Panel v. 2.4-09
In Control Panel click "Start Monitor" to monitor the modem status. User’s Guide for Control Panel v. 2.4-10
Control Panel will read the modem status from phpMyAdmin and display it. (Hint: Stop=red; Fail=red; Initialized=Green; Disable=yellow) User’s Guide for Control Panel v. 2.4-11 User’s Guide for Control Panel v. 2.4-12
Click "Stop Monitor" to stop monitoring. User’s Guide for Control Panel v. 2.4-13
The "Modem Status" textbox will restore its back color. User’s Guide for Control Panel v. 2.4-14 User’s Guide for Control Panel v. 2.4-15



STARTING AND STOPPING THE ENGINE
STEPS SCREEN CAPTURE
Click "Start Engine" to start the service. User’s Guide for Control Panel v. 2.4-16
Open current date Log File which is located in "C:Program Files\SMS Engine Enterprise Edition\log". User’s Guide for Control Panel v. 2.4-17
The log file will show the SMS Engine is started and Modem ID 1 is initialized. User’s Guide for Control Panel v. 2.4-18
In control panel the MODEM STATUS textbox will change according to the modem's current status. User’s Guide for Control Panel v. 2.4-19 User’s Guide for Control Panel v. 2.4-20
In phpMyAdmin the modem status column will be updated according to the current modem status. User’s Guide for Control Panel v. 2.4-21
Click "Stop Engine" to stop the service. User’s Guide for Control Panel v. 2.4-22
The status of Modem ID 1 is now "Stop". User’s Guide for Control Panel v. 2.4-23 User’s Guide for Control Panel v. 2.4-24
