General packet radio service (GPRS) is a packet oriented mobile data service available to users of the 2G cellular communication systems global system for mobile communications (GSM). In 2G systems, GPRS provides data rates of 56-114 kbit/s. (Source: http://en.wikipedia.org/wiki/General_Packet_Radio_Service)
This manual provides step-by-step guide on setting up a GPRS connection using GPRS modem.
- GPRS modem can be used as a back-up for ADSL modem and fixed-line broadband. In the event that ADSL modem and fixed-line broadband fail, internet connection can still be accessed via GPRS modem (assuming that the GSM network operator does not use the same fixed-line).
- PC running on Windows OS.
- Serial port or USB port
- GPRS modem:-
a) MOBITEK® Q24 Modem, Model S-657f ; or
b) MOBITEK® Q24 Modem, Model U-657f ; or
c) Wavecom Modem, Fastrack Supreme 10
SETTING-UP MODEM TO CONNECT WITH GPRS
- To show you how to set up modem to connect with GPRS
- To connect to internet at PC by using GPRS
To connect the GPRS, there are 3 parts where need to configure:
- AT Command
- Add a new hardware
- Create a network connection
Part 1: GPRS AT Command Configuration

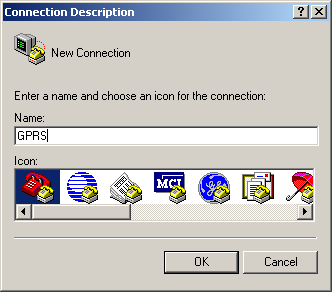

Step 1: At the beginning, enter the:
- Connection name
- Connection icon
Step 2: Choose your connecting port number. In this experiment, COM1 will be chosen.

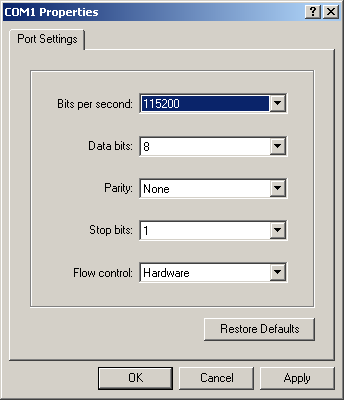

Step 3: Choose 115200 as your bits per second.

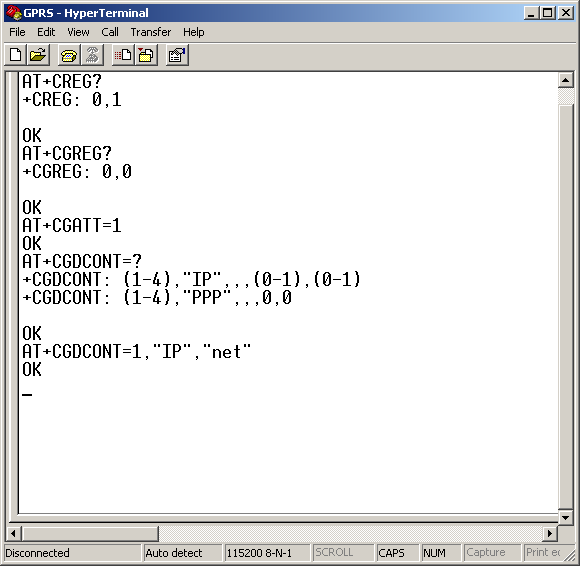

Step 4: Enter the AT command like below:
AT Command explanation:
Alfred: Connect to GSM network
Alfred: Check the connection to GPRS. (Pg. 417/449)
<stat> = 0, not register
<stat> = 1, register (home network)
+CGREG: 0,0 <— not connected to GRPS
Alfred: GPRS attach or detach. (Pg. 407/449)
<state> = 0, detach
<state> = 1, attach
<state> = 2, combine detach (GPRS and GSM detach in the same network request)
AT+CGATT=1 <— connet to GPRS
+CGREG: 0,1 <— connected to GPRS
Alfred: Define PDP context (Pg. 398/449)
Alfred:Define new PDP context (Pg. 398/449)
Access Point Name (APN) for Maxis is “net”, Digi is “diginet”
AT+CGDCONT=1,”IP”,”net” <— APN setting for Maxis
Step 5: Press the disconnect button to disconnect the connection between Hyper terminal and GSM modem.
Part 2: Add A New Modem
There are 2 methods to add a new modem:-
- via “Add Hardware Wizard”
- via “Phones and Modem Options”
Method 1 – “Add Hardware Wizard”

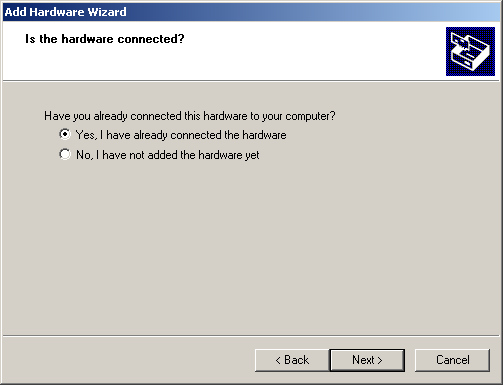

Step 1: Choose “Yes, I have already connected the hardware” if the hardware is connected.

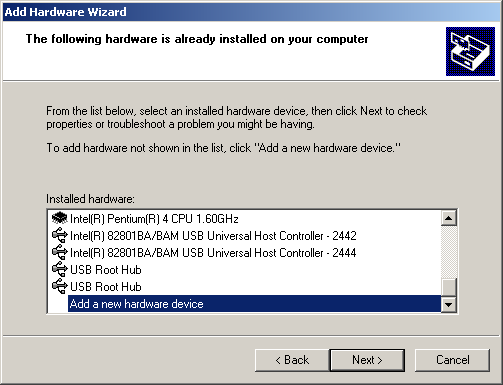

Step 2: Choose “Add a new hardware device” and click “Next”

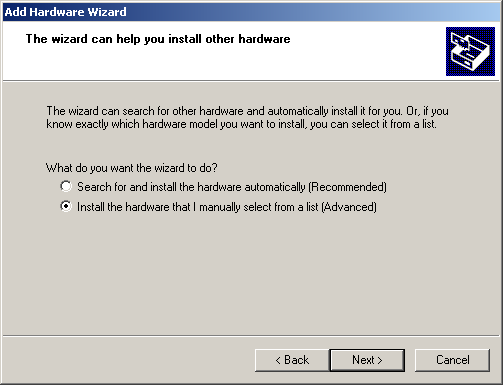

Step 3: Select “Install the hardware that I manually select froma list” and click “Next”
Step 4: Select “Modems” since need to installe a new modems. Click “Next” after that.

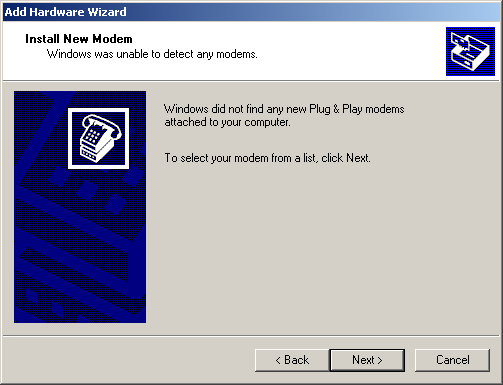

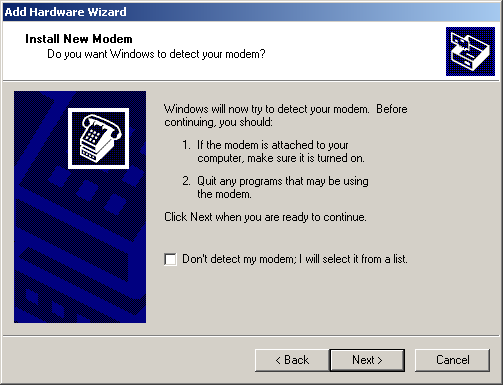

Step 5: Click “Next”
Step 6: Click “Next”
Step 7: Select “Standard Modem Types” and “Standard 56000 bps Modem”. Click “Next” afterward.

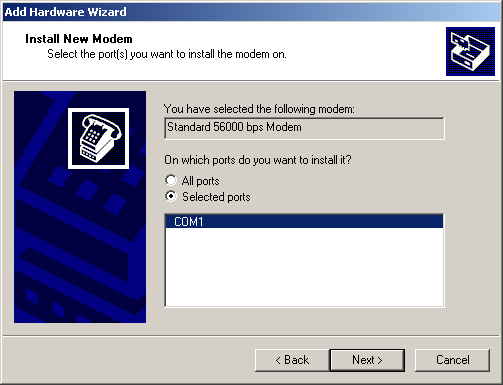

Step 8: Select “COM 1” and click “Next”

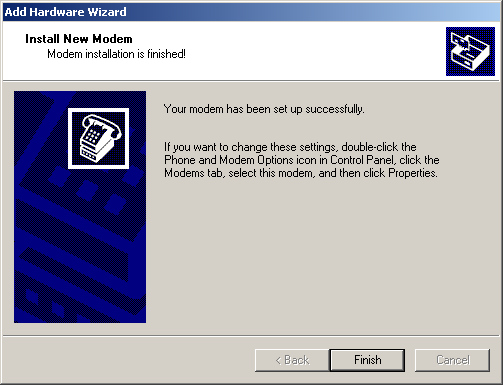

Step 9: Click “Finish”
Method 2 “Phone and Modem Options”
There are 2 ways to add a new modem
- via “Add Hardware Wizard”
- via “Phones and Modem Options”
This section describes method no. 2.

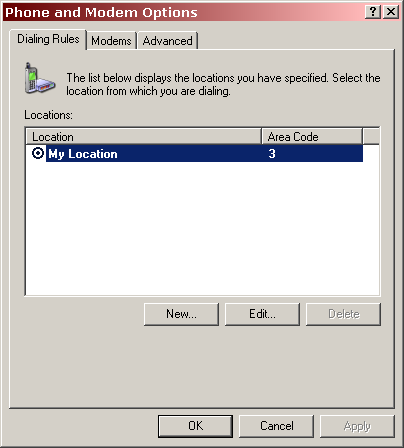

Go to Control Panel > Phone and Modem Options (figure below) > Modems (tab) > Add (button)
After “Add” button is clicked, then “Add Hardware Wizard” form will appear (figure below), and the process is the same with Method 1.
Part 3: Create a network connection

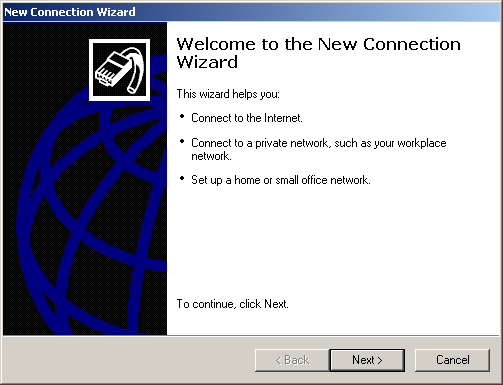

Step 1: Double click “New Connection Wizard” and click “Next”
Step 2: Select “Connect to the internet”

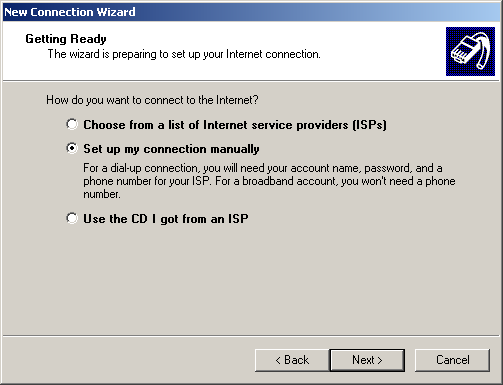

Step 3: Select “Set up my connection manually”

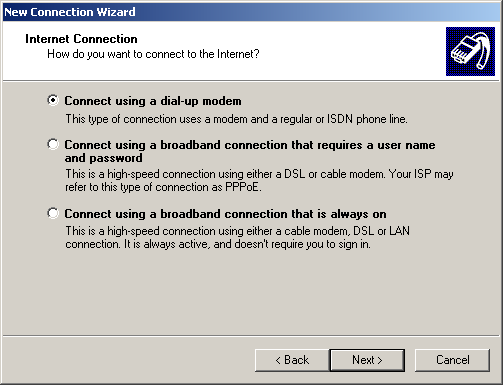

Step 4: Select “Connect using a dial-up modem”

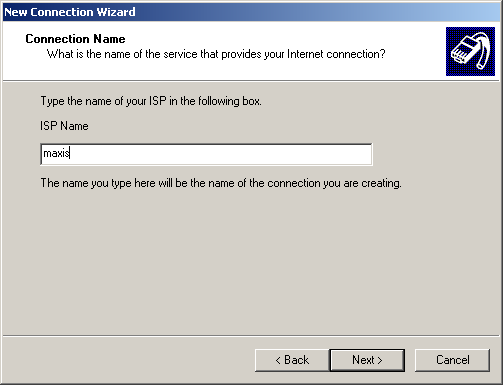

Step 5: Insert ISP name as “maxis”

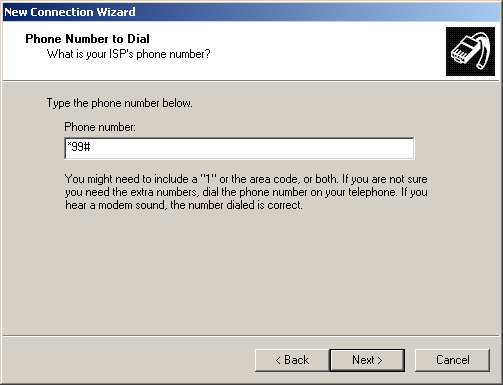

Step 6: Insert the phone number.
- For MOBITEK® Q24 Modem, enter – *99#
- For Wavecom Modem, enter – *99***1#
Step 7: Insert user name and password
- For MOBITEK® Q24 Modem, enter:-
- User name: maxis
- Password: wap
- For Wavecom Modem, enter:-
- User name: (leave blank)
- Password: (leave blank)
Step 8: Click “Finish”
Step 9: At the moment, you will see a dial up connection box appear, jus click “Dial”
Step 10: If the connection is successful, you will see a connection icon as below.
At the end is found that there are some insufficient complete of security system at maxis, where below are the explanation of it.
- Regarding the Maxis GPRS setting, the user name is “maxis” and password is “wap”. However, if other user name such as “umobile” and “hotlink” was created during new connection setting, and the password with “wap”, the connection still connected. In fact, connection only can be connected when the user name and password are valid. Below show the example.
- In this GPRS connection setting, the APN name “unet” and “net” also can be use.
- In this GPRS connection setting, the APN name can be in small capital letter and big capital letter.
GPRS SETTING FOR ALL CELCO
|APN||unet||net||diginet||celcom.net.my or celcom3g||my3g|
